SPECIFICATIONS

Application: Desktop

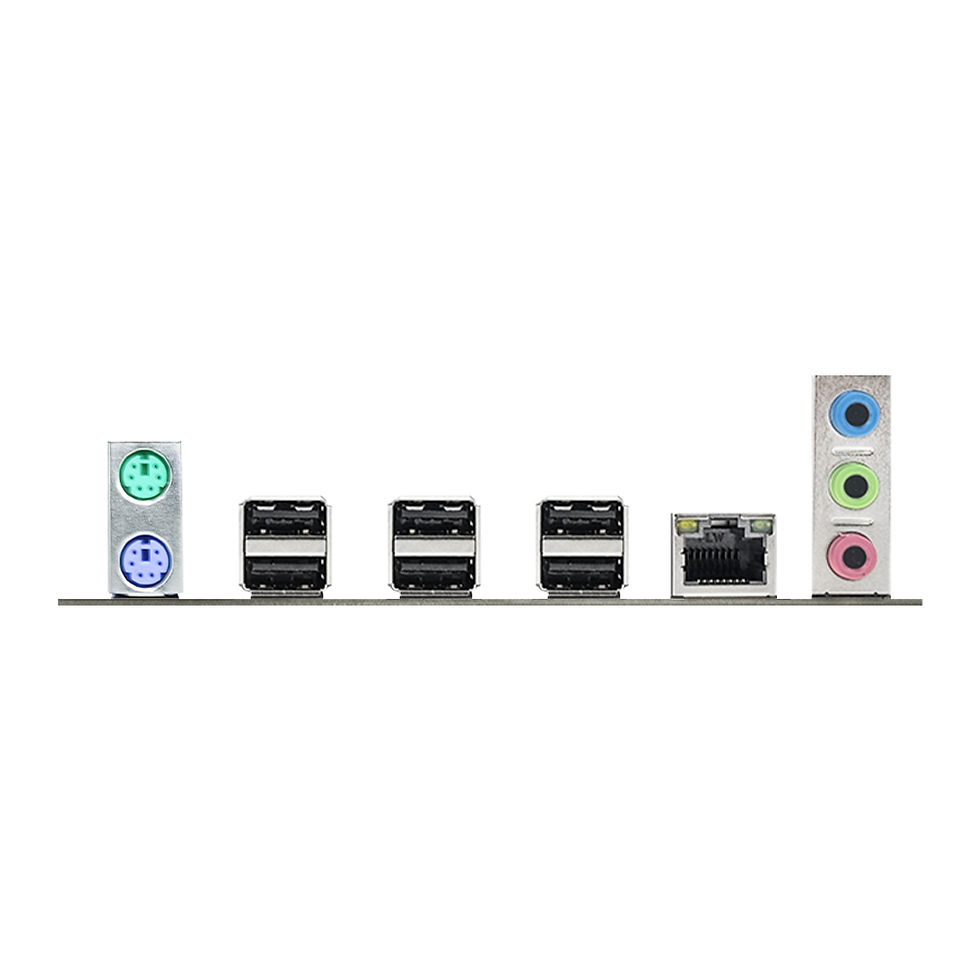

Back I/O Ports: 2x USB 3.2/3.1 Gen 1,4 x USB 2.0,PS/2

Battery Included: no

Brand Name: SOYO

Chipset: Intel X99

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 1

Number of PCIe x 1: 1

Number of SATA Ports: 2

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),USB 3.0 Connector,8-pin +12V Power Connector,USB 2.0 Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: PCI-Express X1

Processor compatibility: Intel Xeon E Series

Quality Certification: ce,ROHS

RAID Supported: Yes

SATA RAID: 0

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: SATA 2,M.2 (NVMe)

Support Memory Type: DDR4 ECC

Supports M.2 SSD: 2280,22110

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Design,Scientific Computing,3-D Modeling

With CPU: Yes

● Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully.

● Differences between packages

•Motherboards: 1*SY-X99 D4 motherboard

•Motherboard+CPU: 1*SY-X99 D4+1*E5 2650 V4 CPU

•Motherboard+CPU+RAM: 1*SY-X99 D4+1*E5 2650 V4 CPU+DDR4 8G*1

Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

●CPU:

•Processor Series: Intel Xeon

•Model number: E5 2650 V4

•Processor Speed: 2.4GHz

•Maximum core frequency: 3.3GHz

•Processor Socket: LGA2011-3

•Process: 14nm

•Memory type: DDR4 1600/1866/2133/2400

•The number of CPU cores: 14

•The number of threads: 28

•L3 cache size (MB): 35 MB

•Wattage: 120 Watts

●CPU will be final double tested before shipping

In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don't place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

●Note:

(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.

(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 first. The motherboard's gray RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots

(5) For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°)This is normal. The actual temperature can be tested with a body thermometer.

# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
